Product Overview:

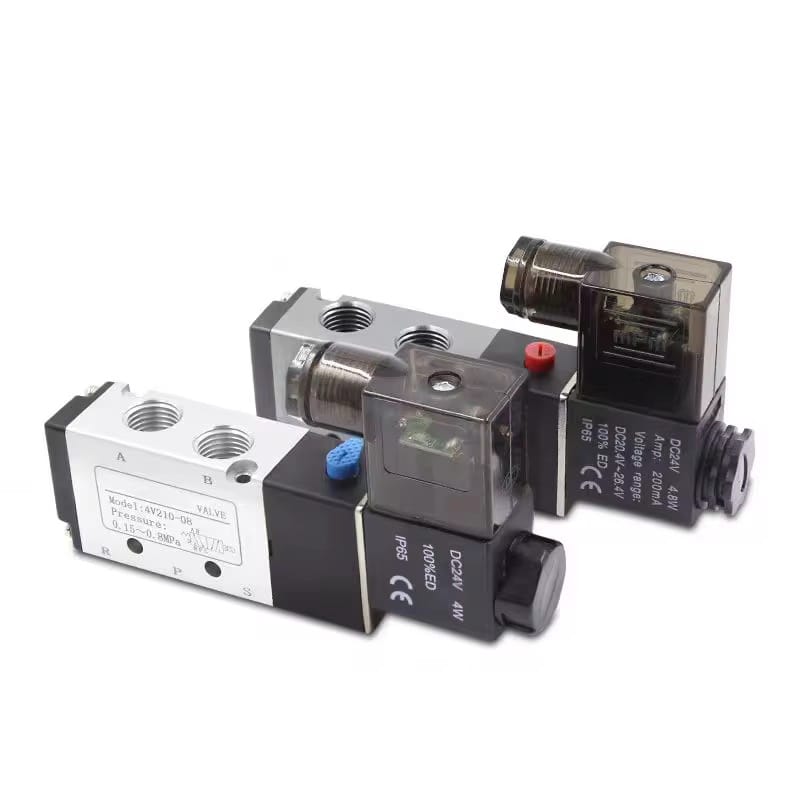

Our 4V Series Solenoid Valves are designed for high-frequency, reliable switching in demanding automation environments. Combining rapid response times with energy-efficient solenoid technology, these valves provide the precision needed for complex pneumatic logic and actuator control.
Key Features:
High Sensitivity Spool: Precision-machined internal spool ensures low starting pressure and long service life (over 10 million cycles).
Energy Efficient Coils: Low-wattage copper coils minimize heat generation, allowing for continuous 100% ED duty cycles.
Manual Override Button: Equipped with a manual test button for easy system debugging and troubleshooting during installation.
Internal Pilot Structure: High-flow capacity with minimal air consumption for optimized system efficiency.
Robust Aluminum Body: Hard-anodized valve body provides excellent resistance to corrosion and mechanical wear.
Technical Specifications:
| Feature | Details |
| Working Medium | Filtered Compressed Air (40μm) |
| Pressure Range | 0.15 – 0.8 MPa (21 – 114 PSI) |
| Response Time | ≤ 0.05 Seconds |
| Operating Temp | -5°C to +60°C |
| Insulation Grade | F Class (IP65) |
