Product Overview:

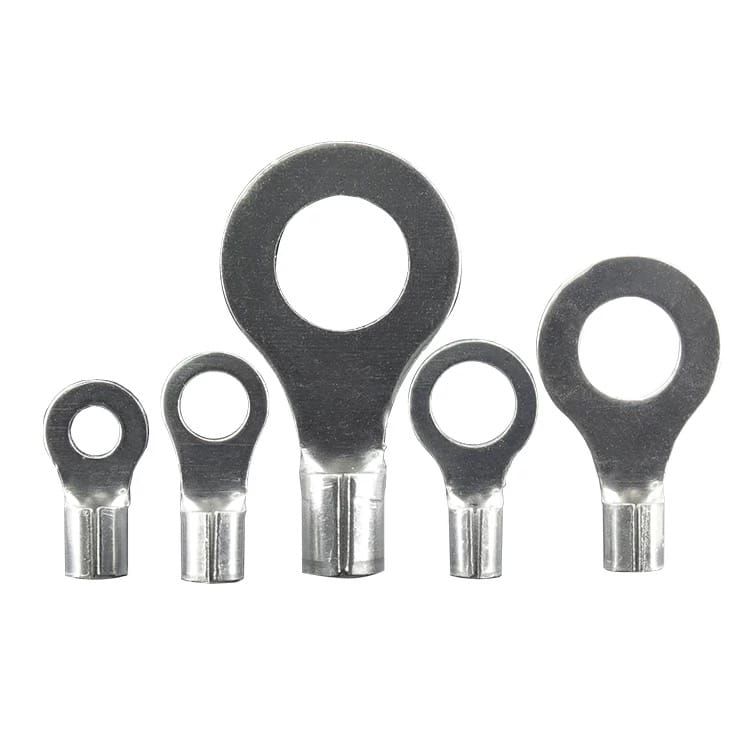

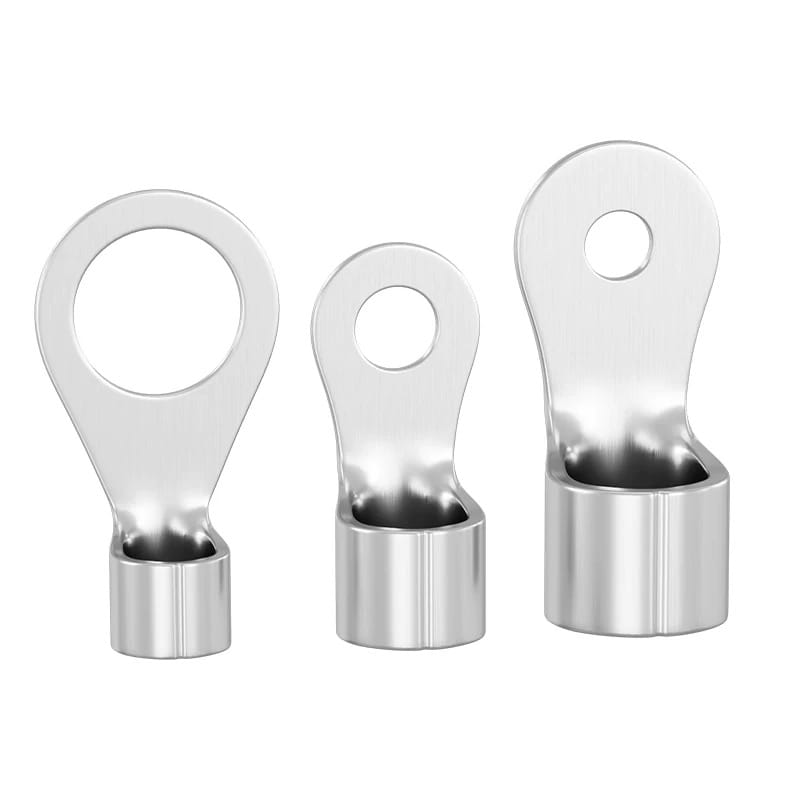

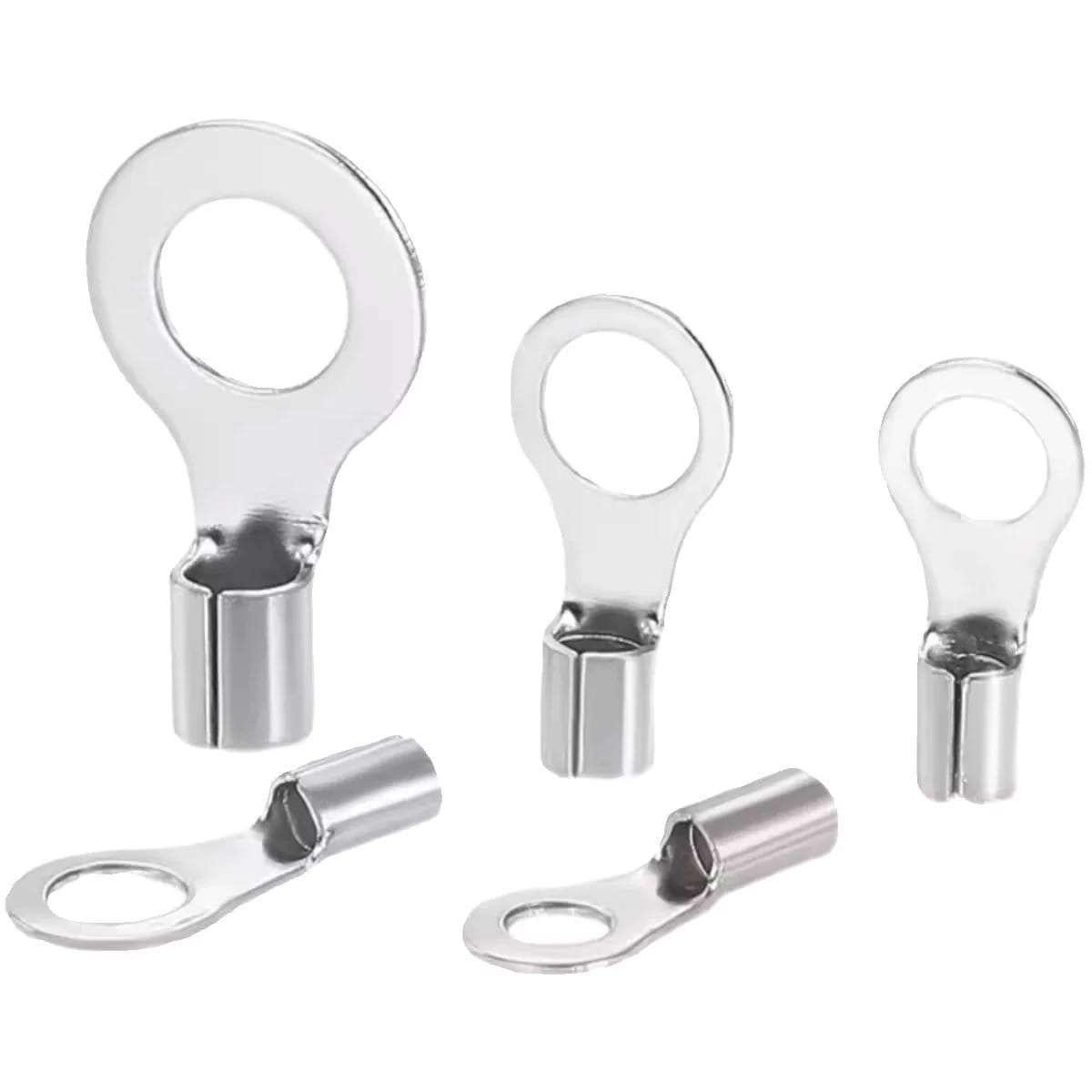

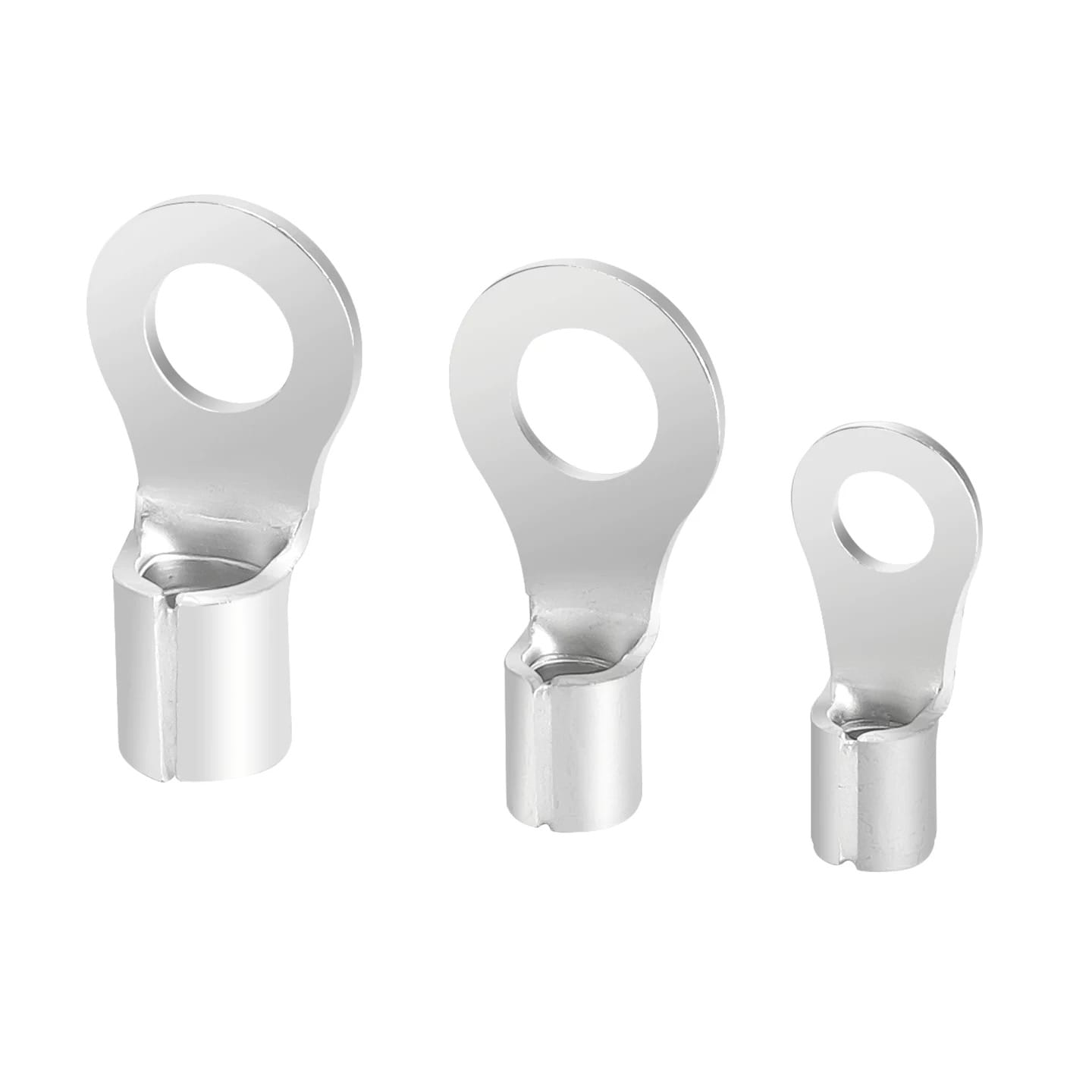

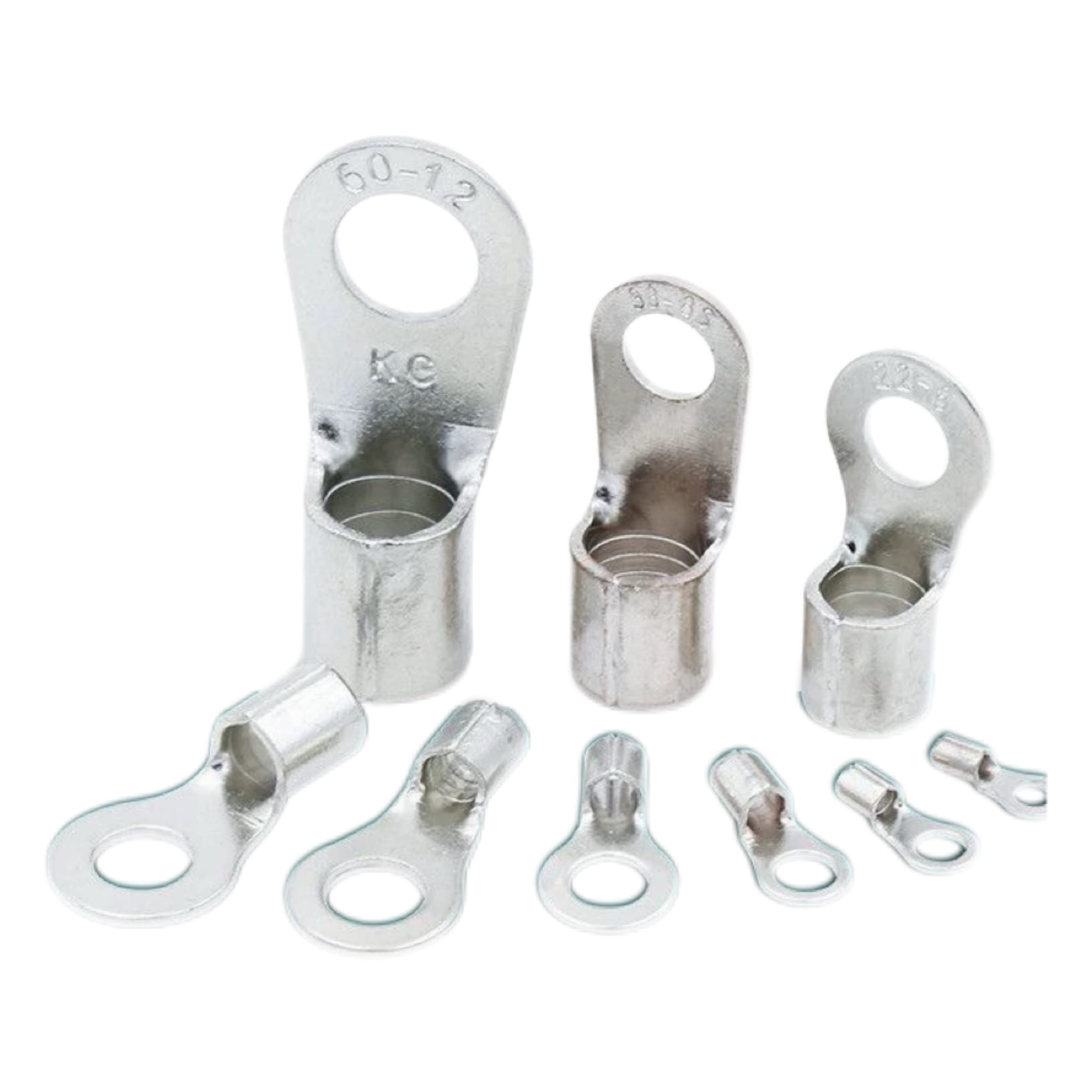

Our RNB Series Ring Terminals are the gold standard for secure and permanent electrical connections. Designed for high-reliability applications, these O-type connectors feature a circular head that prevents accidental disconnection even under heavy vibration. Manufactured from 99.9% pure copper and electro-tin plated, MUGE RNB terminals are engineered for maximum conductivity and long-term durability in power distribution and industrial control systems.
Key Features:
Enhanced Safety: The closed-ring design ensures the terminal remains secured to the stud until the fastener is intentionally removed.
Premium Conductivity: High-purity electrolytic copper minimizes voltage drop and heat buildup.
Corrosion Resistance: Advanced tin plating provides a robust barrier against moisture and oxidation, perfect for industrial environments.
Seamless Crimp Performance: High-strength barrel construction allows for a permanent, airtight bond with the cable during crimping.
Broad Compatibility: Available in a wide variety of sizes to fit cable cross-sections from 0.5$mm^2$ up to 630$mm^2$.
Technical Specifications:
| Feature | Details |
| Material | T2 Electrolytic Copper |
| Plating | Electro-Tin Plated |
| Cable Range | 0.5$mm^2$ – 630$mm^2$ |
| Bolt Hole Sizes | M3 to M20 |
| Certifications | CE, RoHS, ISO9001 |
